TPMS
TU06N

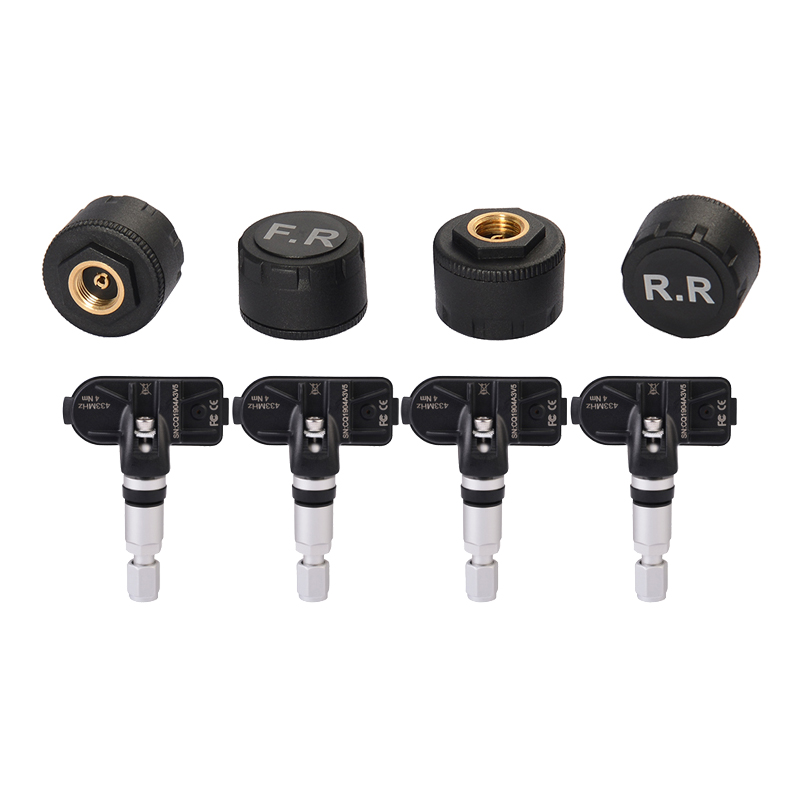

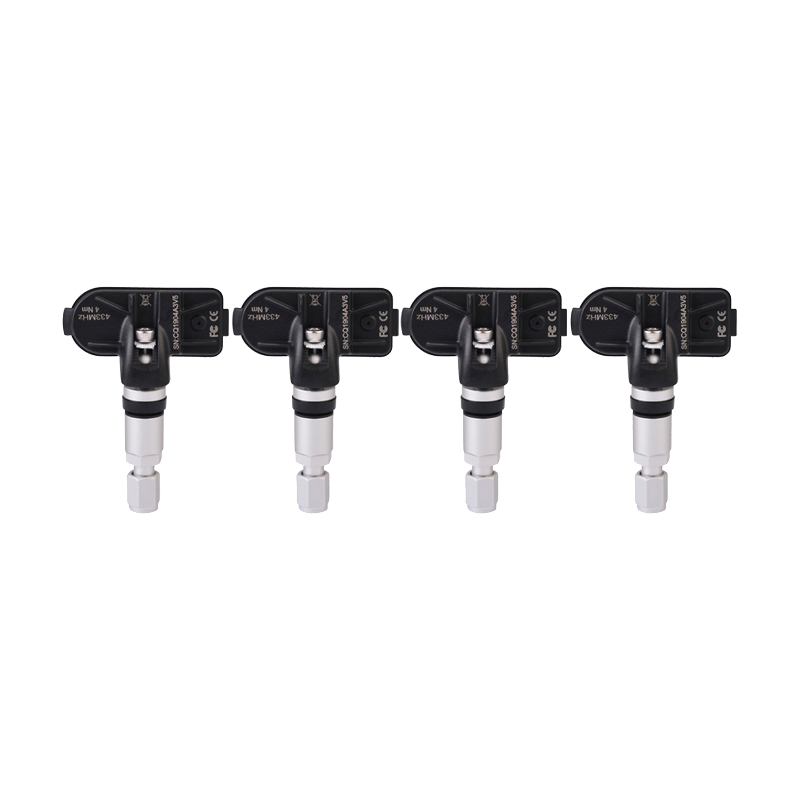

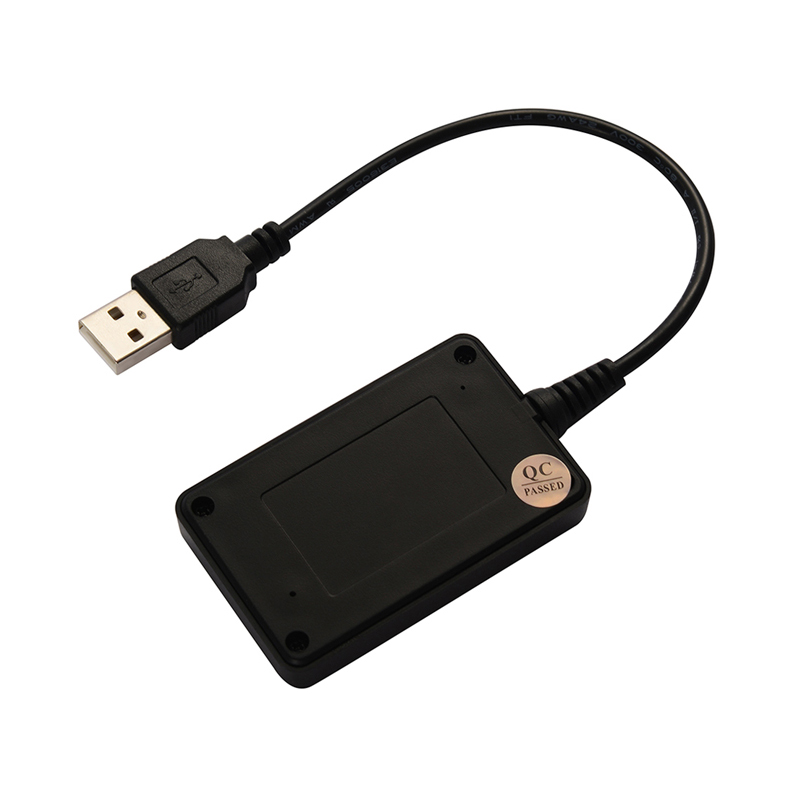

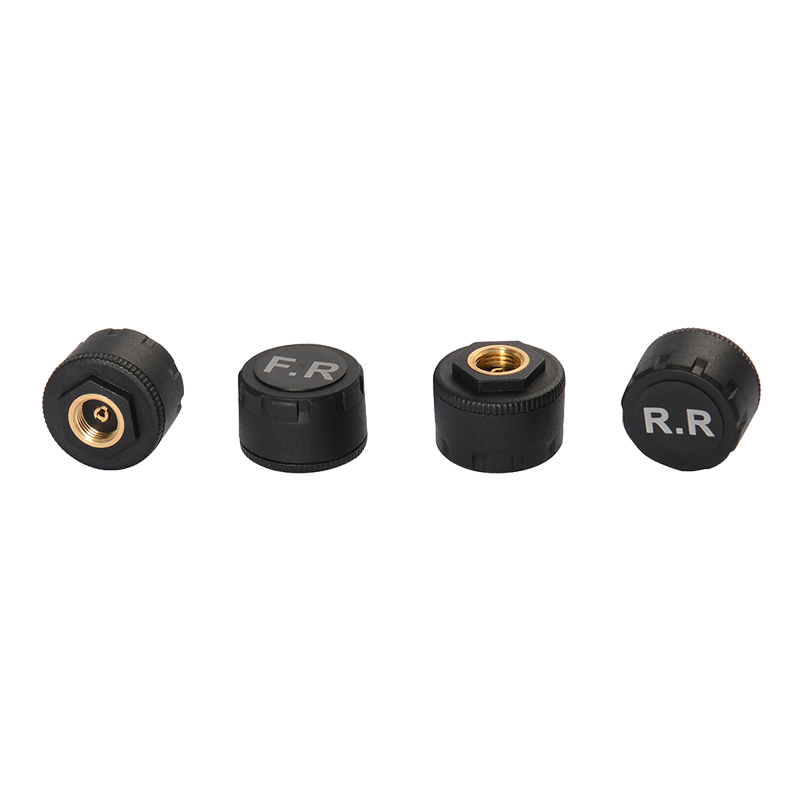

TU06N TPMS solution for real-time tire pressure monitoring and safer vehicle operation.
Fit ForAndroid head unit
Details
Product specification
Fit ForAndroid head unit
Transmission frequency433.92MHz / #rowspan#
Power supplyUSB connect with head unit / #rowspan#
Operating voltageDC-5V input / #rowspan#
OSAndroid 4.0 and above / #rowspan#
OS LanguageFollow android head unit / #rowspan#
Pressure unitbar / psi / #rowspan#
Temperature unit℃ / ℉ / #rowspan#
Operating temperature-20 -- 85℃ / #rowspan#
Storage temperature-40 -- 125℃ / #rowspan#
Transmission frequency433.92MHz / #rowspan#
Pressure range0 – 8 bar / 0 – 116 psi / #rowspan#
Low pressure alarm value1.8 bar (Defaults) / #rowspan#
High pressure alarm value3.0 bar (Defaults) / #rowspan#
Accuracy of Measurement±0.1 bar / ±1.5 psi / #rowspan#
Operating voltageDC+2.0 – 3.6V / #rowspan#
Operating temperature-20 -- 85℃ / #rowspan#
Storage temperature-40 -- 125℃ / #rowspan#
WaterproofIP67 / #rowspan#
BatteryBuilt-in CR2450 button battery (Not removable and replaceable) / #rowspan#
Battery life2-3 years / #rowspan#
Packing list1 x TPMS receiver, 4 x Sensor, 1 x USB disk (include APK), 1 x User Manual / #rowspan#
Gift box size16*14*5CM / #rowspan#
Weight320±5g / #rowspan#
Cartons50 sets/cartons / #rowspan#
G.W17 KG/cartons / #rowspan#
Cartons size51*36*34.5 CM / #rowspan#
Core advantages
Real-time pressure monitoring
Android navigation compatibility
Reliable sensor communication
Factory-direct manufacturing
ODM and OEM available
CE/FCC/RoHS/PSE certification support
